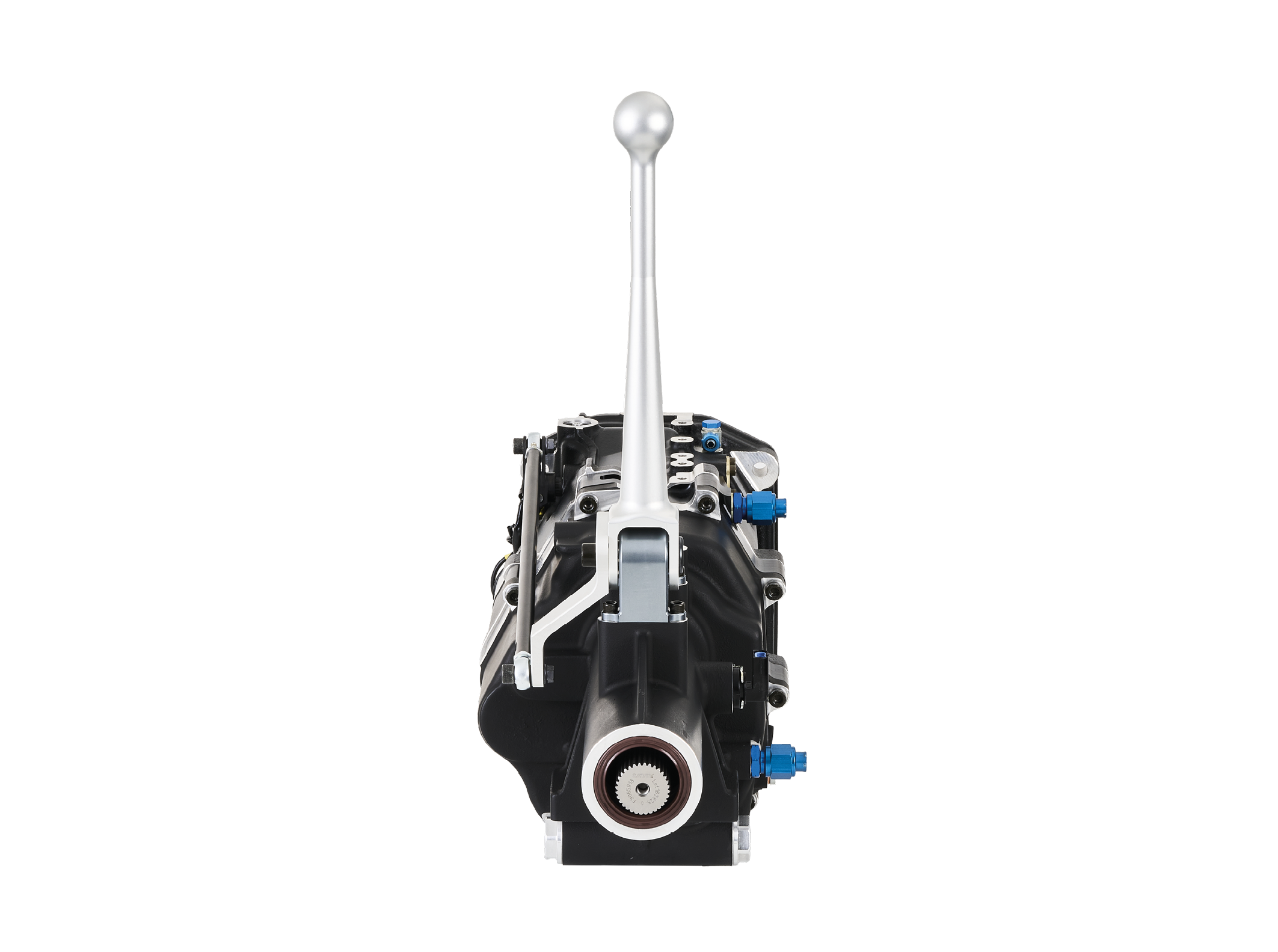

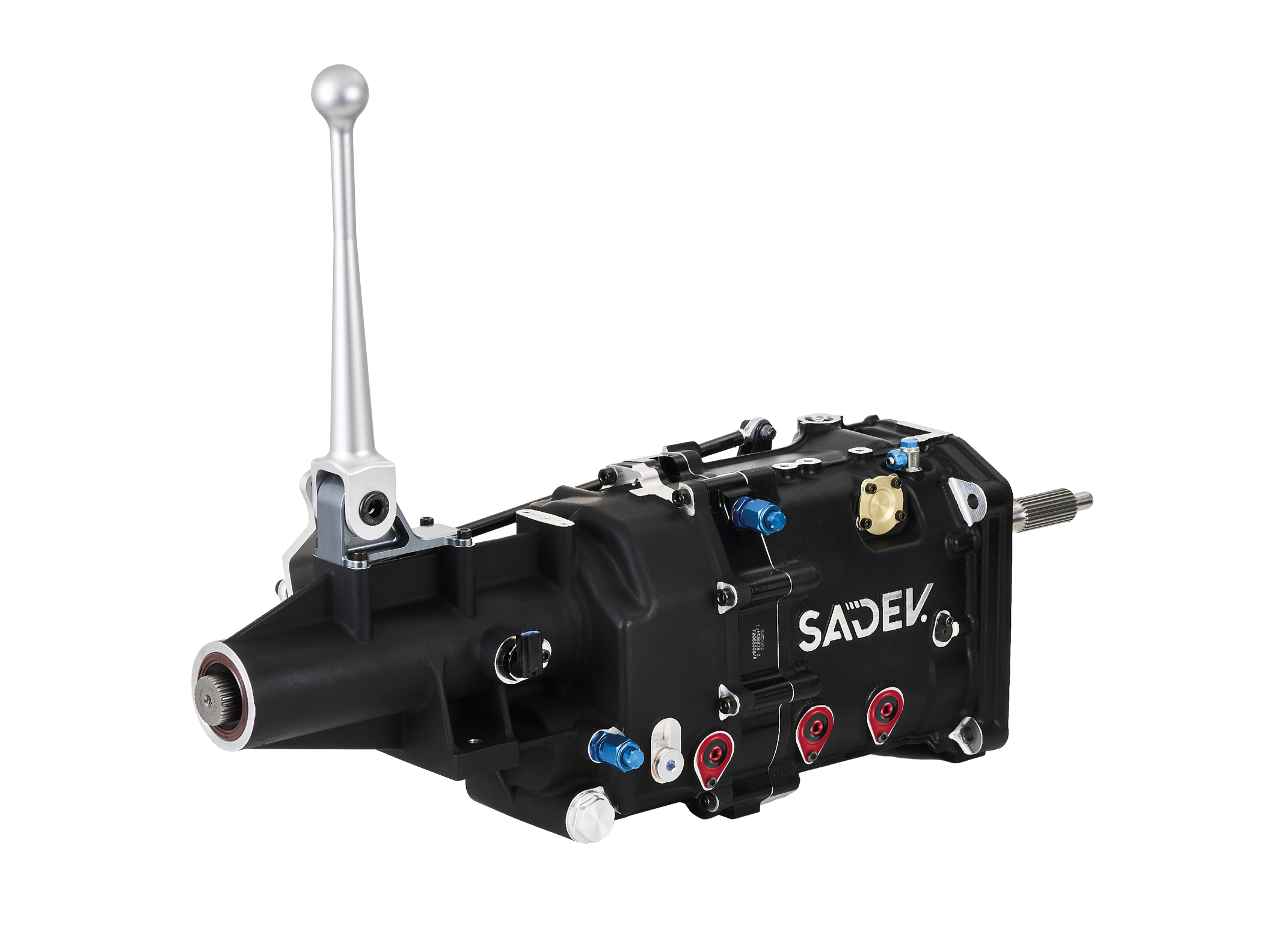

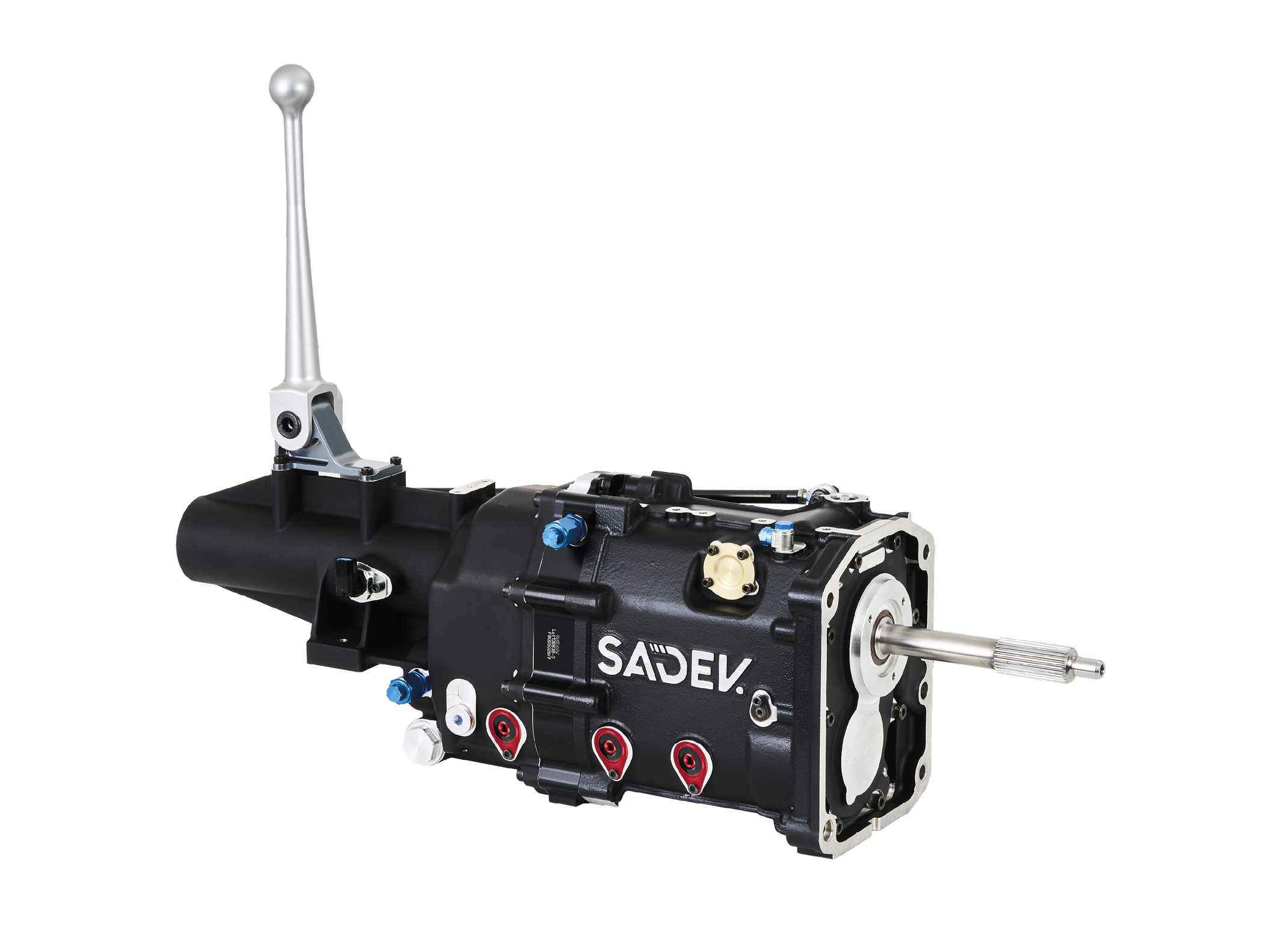

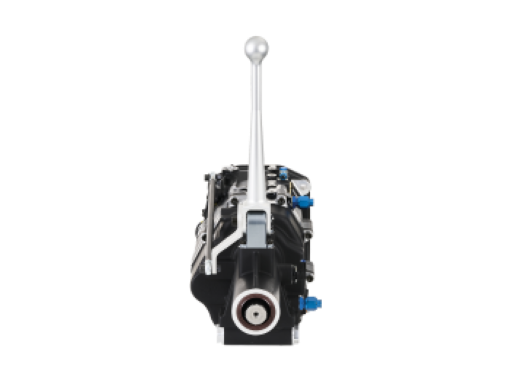

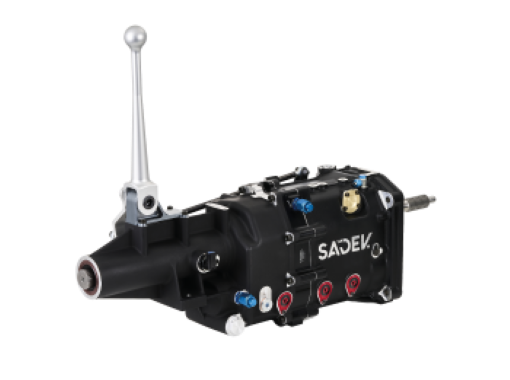

SCL 924 LT
Beginning with the SCL90 and more recently the new, more advanced SCL924, SADEV has accumulated experience and success across many
motorsport platforms.
The SCL924 LT (Long Tail) is the next progression. With up to (8) shifter locations, slip yoke output, OEM style speed sensor and tail-case cross member mounting surface, this further expands the integration options for our customers.
The SCL924 is a very compact, strong, light and efficient product for high powered engines used in many applications such as GT, Off-road, and Drift, while keeping overall cost in mind.

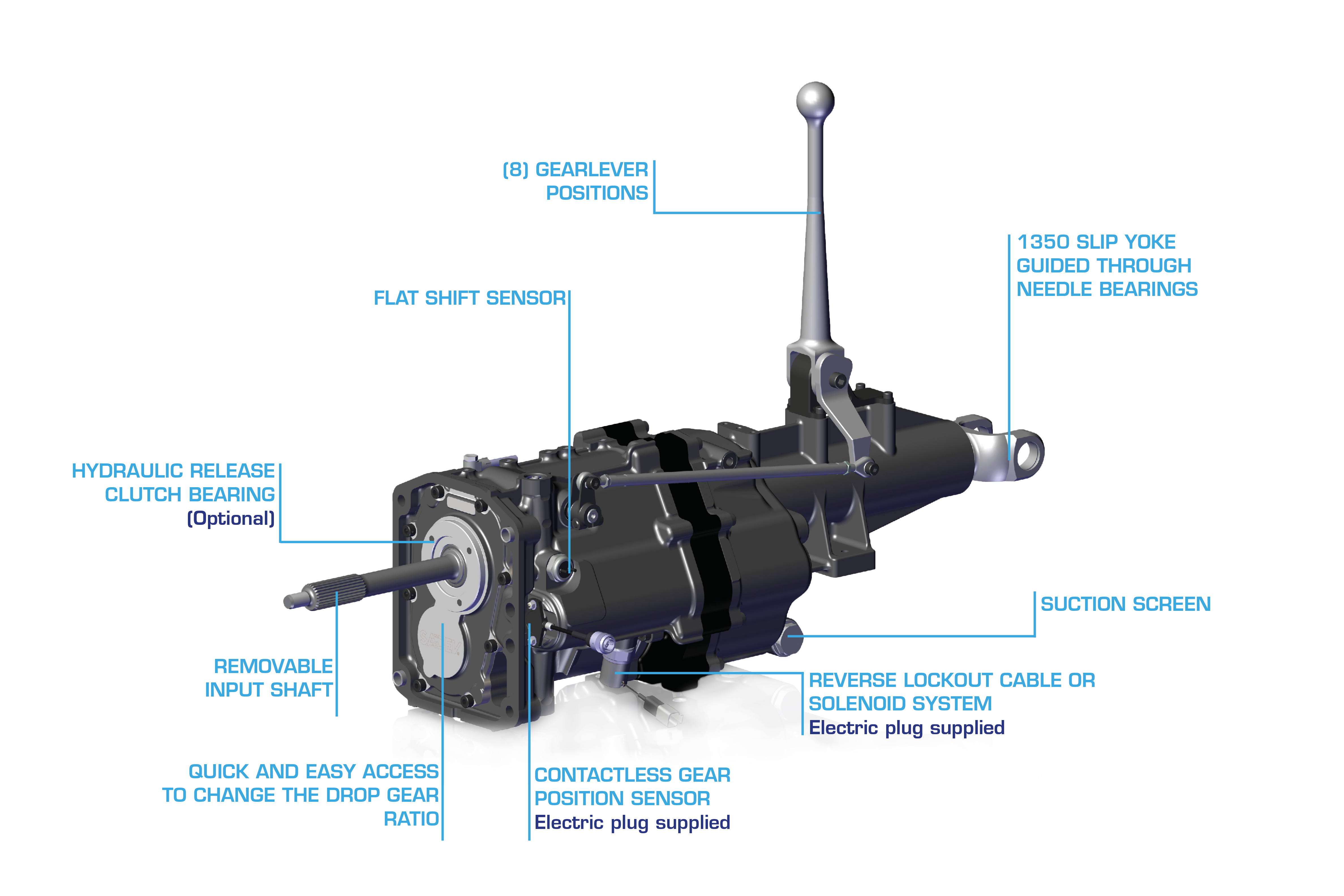

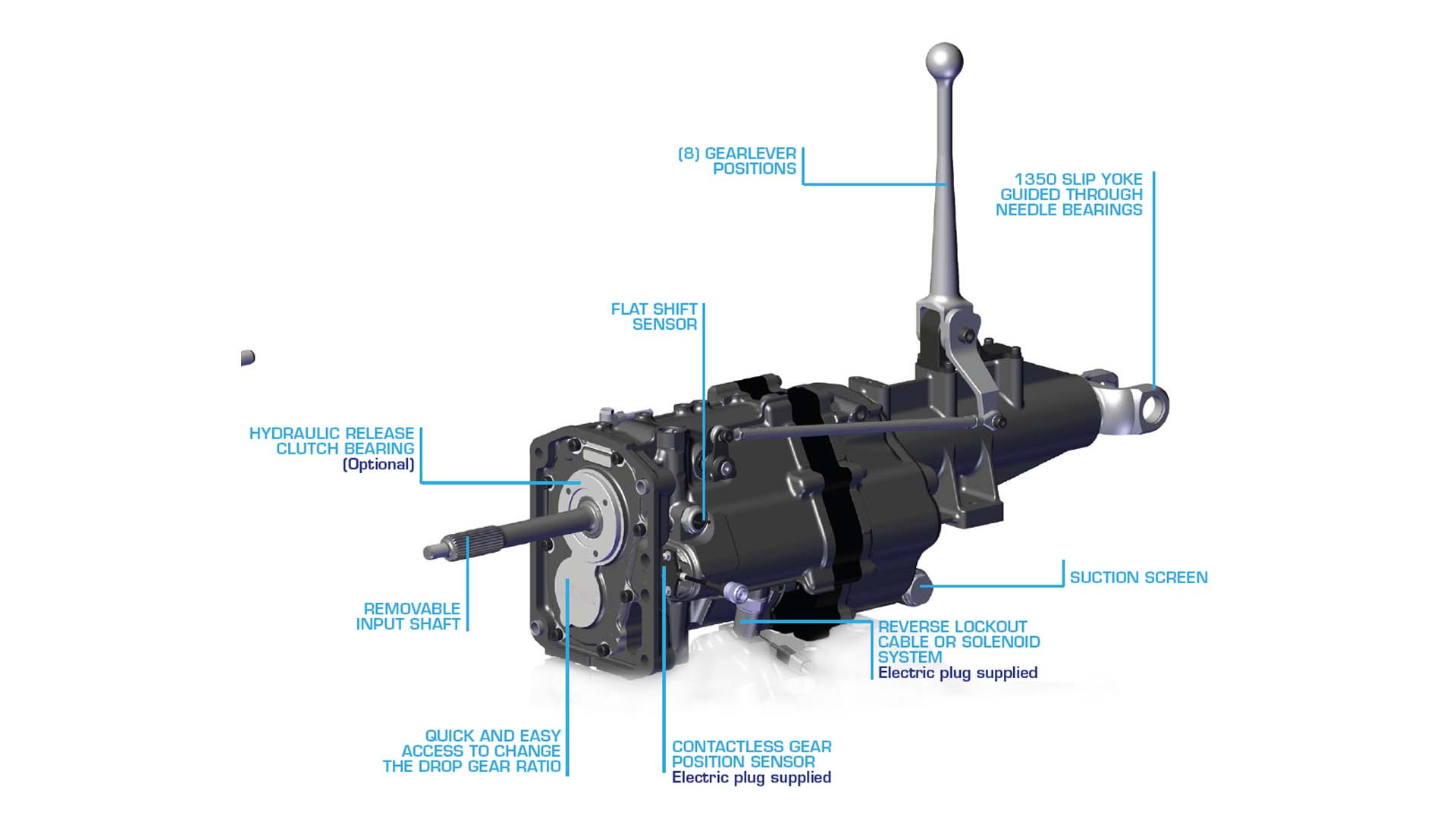

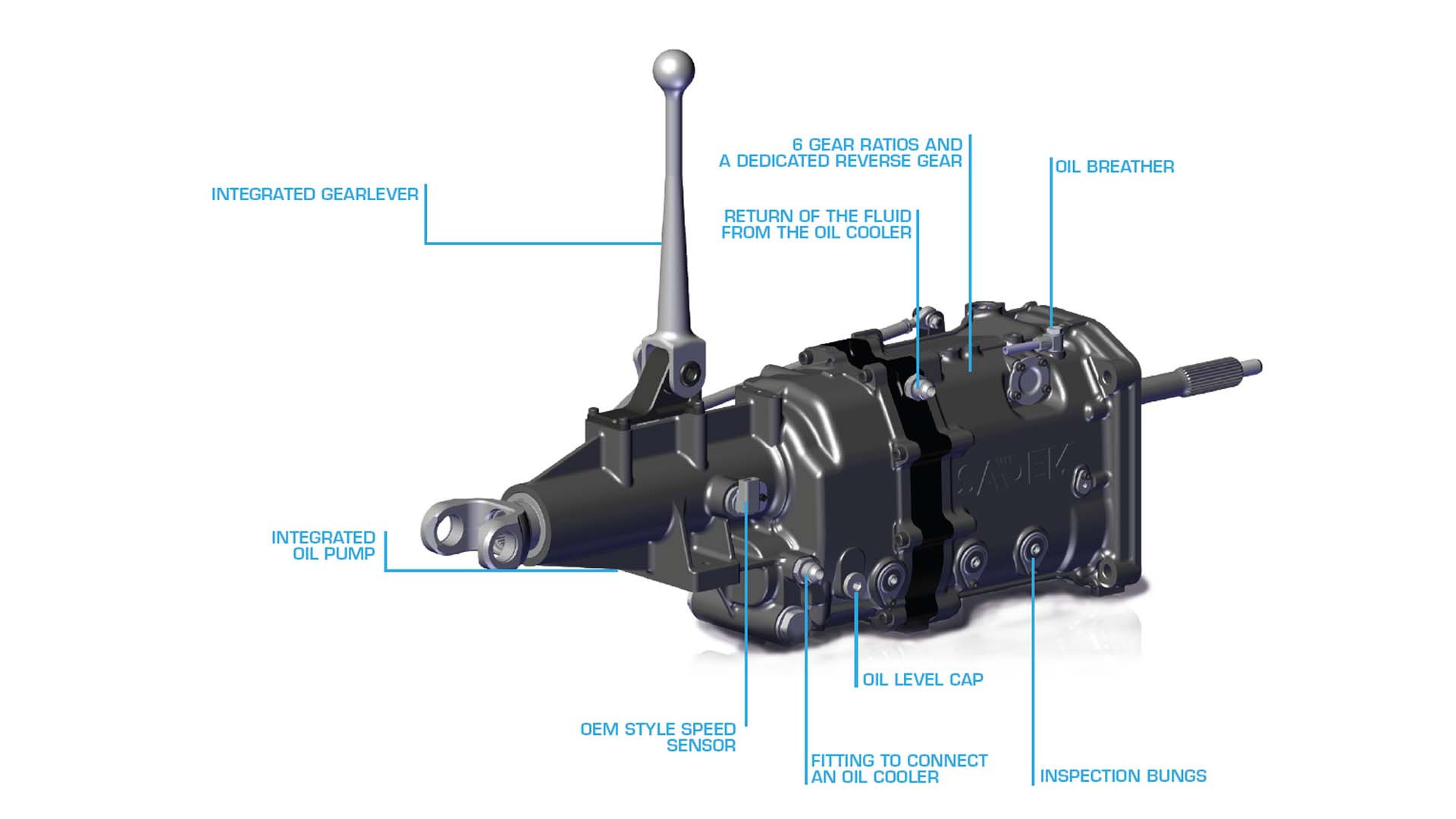

TECHNICAL SPECS
- 6 speed sequential gearbox + 1 reverse gear
- Manual sequential gear selection
- Wide range of final drives available
- Wide range of ratios available
- Straight cut gears
- Gear engagement made by dogs
- Interchangeable gear ratios
- High strength carburizing steel
- Gear teeth grinded with optimized profile
- Shot peening on internal parts
- Specific input shaft
- Hydraulic clutch bearing (optional)
- Reverse lockout cable (solenoïd system optional)
- Contactless gear position sensor
- Flat shift sensor
- Fittings to connect external oil cooler
- Oil suction screen
- Magnetic drain plugs
- Casing joint faces sealed with O'rings
- Directed and pressurised lubrication on the gears
- Lubrication lines through the casing
- Integrated oil pump
- Painted AS7G aluminum casings
- Inspection bungs
- 1350 Slip Yoke guided through needle bearings
- Weight (input shaft included) : 43.7Kg - 96 lbs
Accessories
- Gear display
- Mounting plate
- Paddle shift
- Propshaft
Applications
- Circuit
- Hill Climb
- Rally
- Drift
Engine torque 1000 N.m
